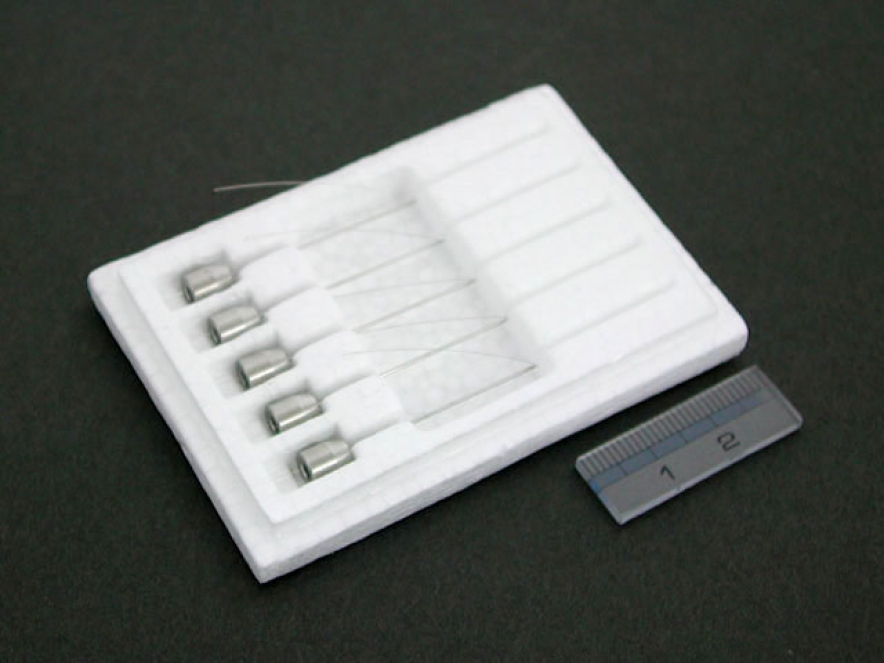

NEEDLE,XX-MS61, 5pcs
Part Number: 670-12504-85
Type: Removable Needle Syringe
Needle Tip Style: Bevel
PTFE Tipped Plunger: No
Needle Length (mm): 30
Needle OD (mm): 0.56
Needle ID (mm): 0.3
Usage: Gas Analysis
NeedleLength (): 30
Lead Time: 3 - 5 weeks
Removable Needle Style
Gastight syringes with a capacity of milliliter quantity level. The needle is 30mm long and is of a screw-in type, which ensures an easy exchange.
Needle tip:
Syringe termination:
| Syringe Volume | Needle O.D. (mm) | Needle Length (mm) | Syringe Part Number | Replacement Needle Part number |
|---|---|---|---|---|
| 0.25 mL | 0.56 | 30 | 670-12504-28 | 670-12504-85 |
| 0.5 mL | 0.56 | 30 | 670-12504-29 | 670-12504-85 |
| 1 mL | 0.56 | 30 | 670-12504-30 | 670-12504-85 |
| 2.5 mL | 0.56 | 30 | 670-12504-31 | 670-12504-85 |
| 5 mL | 0.56 | 30 | 670-12504-32 | 670-12504-85 |
| 10 mL | 0.56 | 30 | 670-12504-33 | 670-12504-85 |
